Schaller S-Locks

Schaller S-Locks – protect your love

With Schaller Security Straplocks, we developed and patented a completely new product in 1981, probably the most secure connection between guitar and strap. In 2018, the next generation was introduced with the S-Locks.

Concept and features

1 set S-locks complete with strap button M (4.0 x 22 mm)

(see product description below for detailed assembly instructions)

S-Locks: S for Safe, Silent & Schaller strap locks

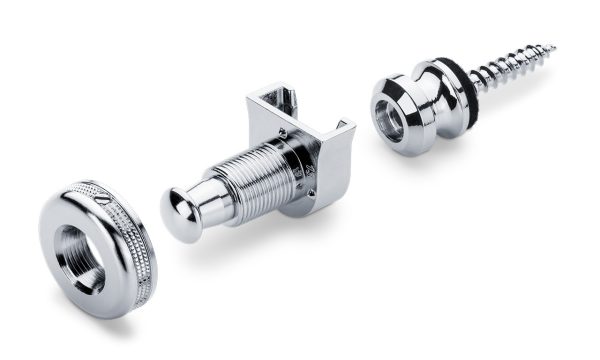

In the development of the new revolutionary S-Locks we have combined 3 parts to perfection:

• unique one-piece hardened steel strap buttons
• S-Locks suitable for different belt thickness with ergonomic operation
• and a patented locking nut – Lock-Wheel – with triple security architecture.

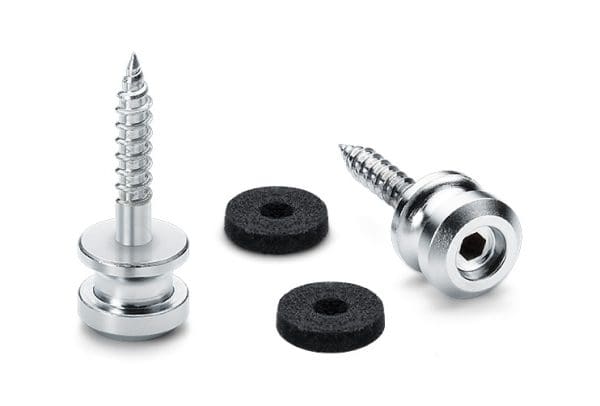

The S-Locks new strap button

• new and unique one-piece construction, easy to install via 3 mm (1/8″) Allen key.
• special 4 mm wood thread in S-Lock size M for maximum grip. Optionally available in sizes S (3.5 mm) and L (4.5 mm). Please refer to the installation instructions in the description below for size specifications.
• hardest steel for maximum wear resistance and safety
• including high-grade felt washers to protect your instrument

The S-Locks improved new lock

• extended thread length for holding straps of up to 6 mm thickness,
• newly designed slanted locking bolt made of stainless steel for minimum wear and thus maximum safety
• new design pull-up ball for best haptics
• suitable for a standard hole in the belt of 10 mm

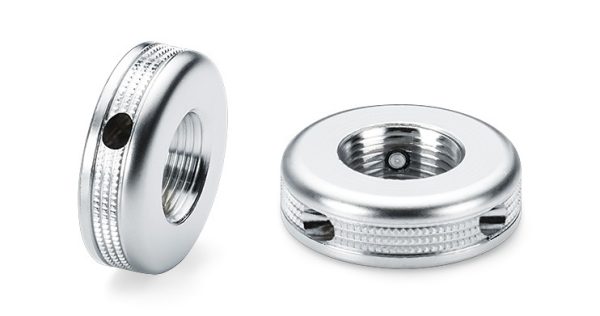

The new Lock-Wheel: featuring 3-stage safety concept

• Lock-Wheel with special patent thread ensures a secure hold. It can be tightened safely by hand without tools.

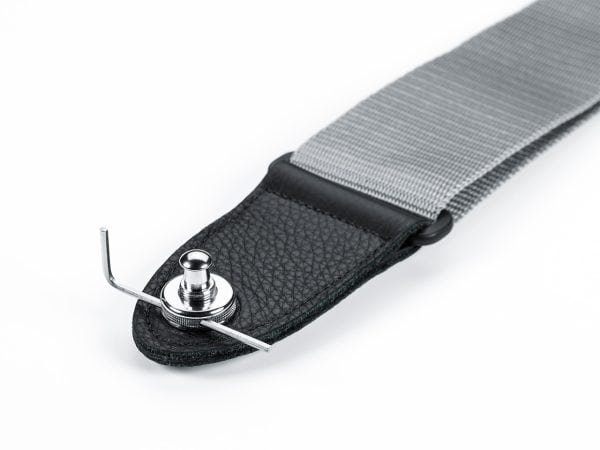

• The 2-hole mount (suitable for 2 mm Allen key or screwdriver) allows a firmer tightening torque of the Lock-Wheel with maximum hold.

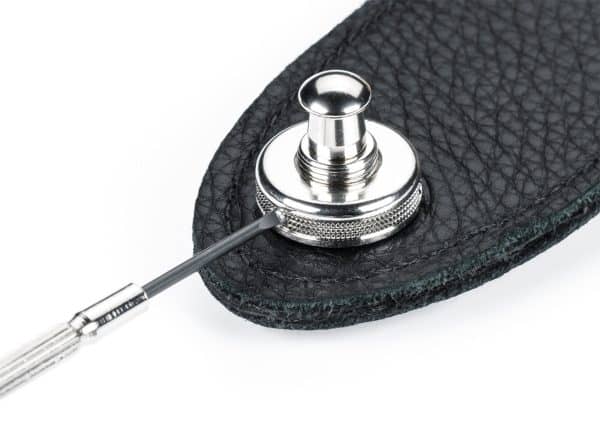

• Undetachable hold due to grub screw with tapered cap and slot 2.5 x 5 mm made of stainless steel. Simply unscrew the set screw again to unscrew the Lock-Wheel; the thread remains functional and cuts itself “free” again through the Lock-Wheel.

Final

• Put all parts together and give it a shake
• Sounds of silence – You will be amazed: Whether on stage or in the studio, S-Locks do not rattle.
